Sản phẩm

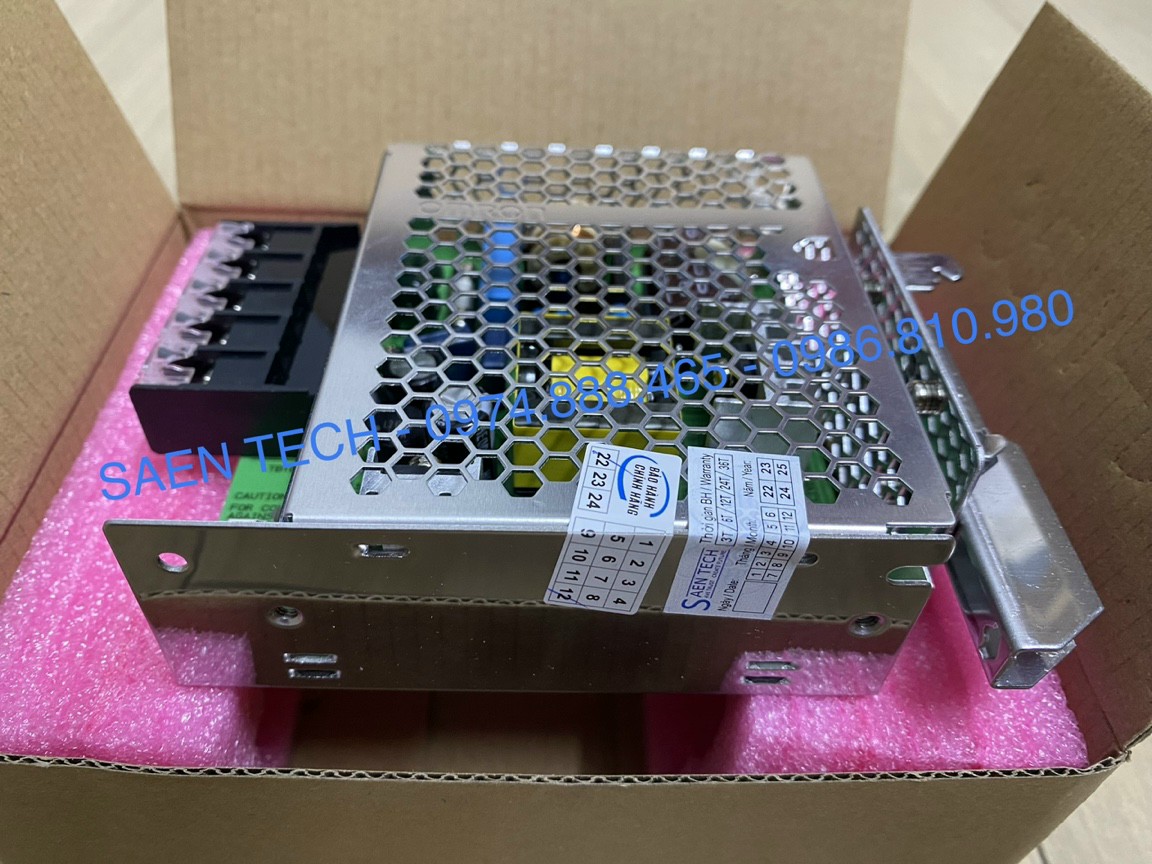

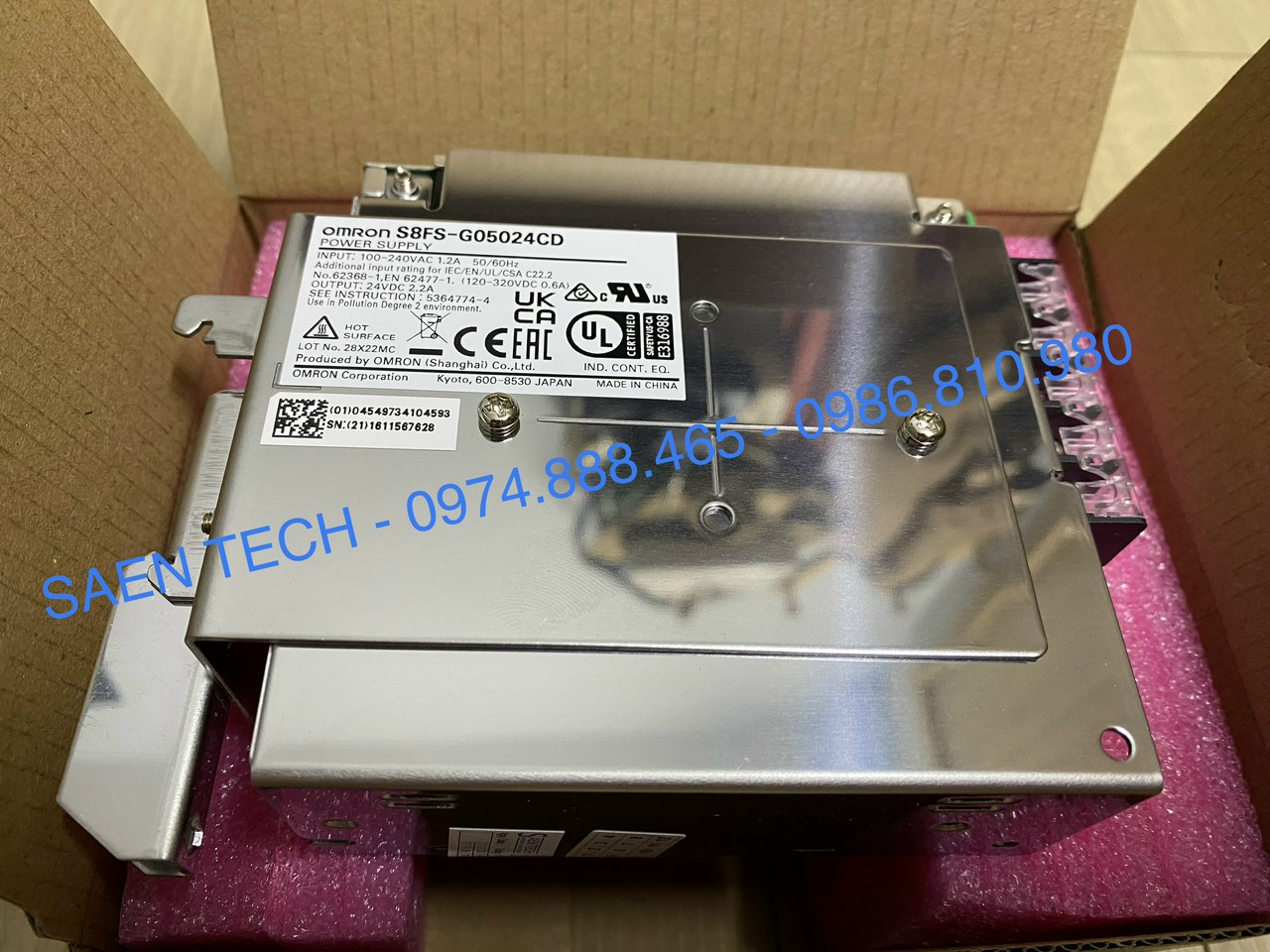

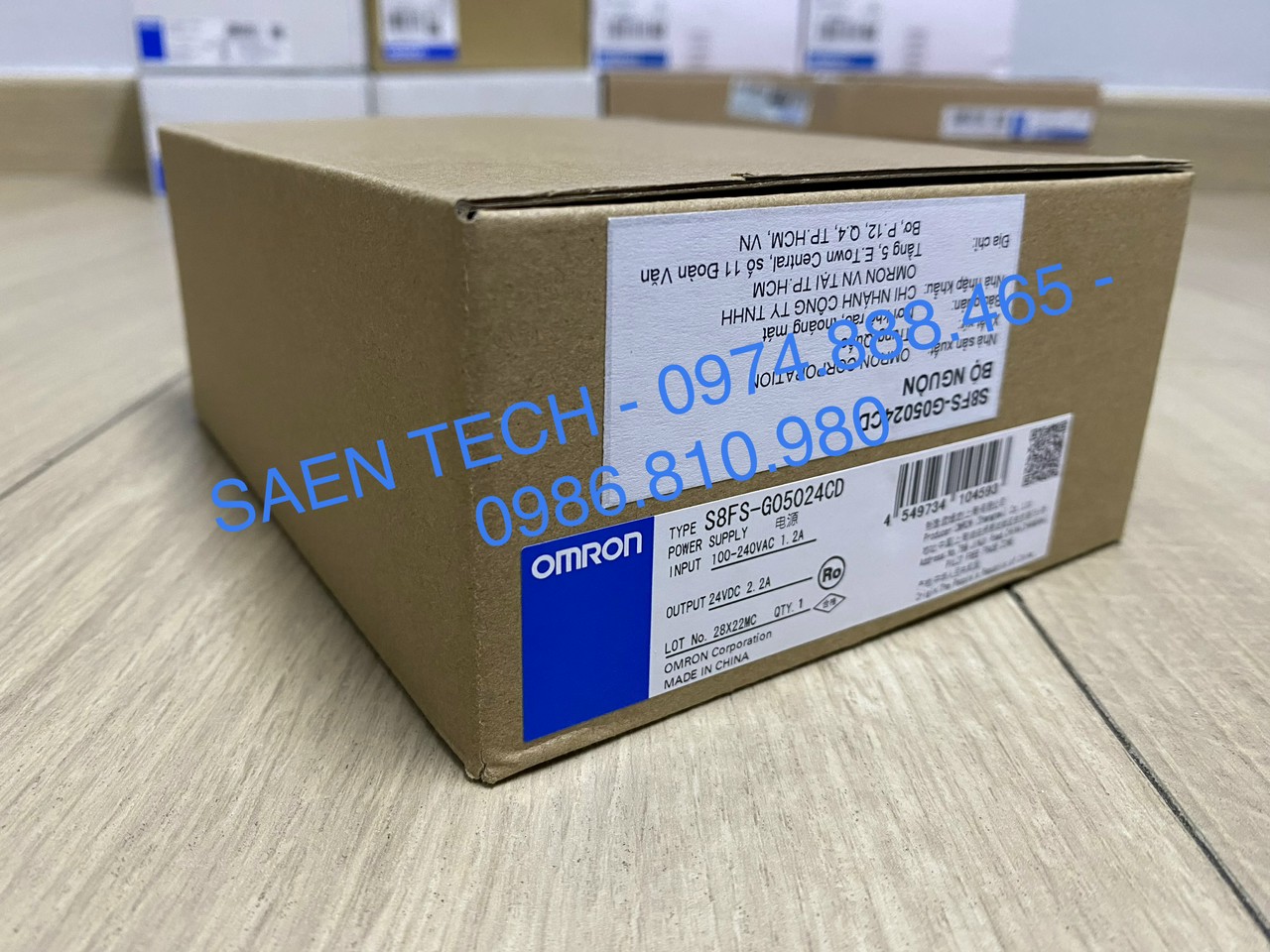

Bộ nguồn S8FS-G05024CD Omron (Power supply)
- Input 100 ~ 240 VAC
- Output 12VDC Power 350 W
- Efficiency 75% ~ 90%
- Protect function Overload protection, overvoltage, anti-vibration, electric shock protection
- UL standard, CSA, CCC, EN
Mô tả
| Type | Enclosed |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 50 W |
| Efficiency | 89 % |
| Output voltage | 24 V |
| Rated output current | 2.2 A |
| Temperature range | -20-70 °C |
| Features | Terminal block facing forward |
| Terminal type | Screw |
| Communication port(s) | None |
| Alarm function | – |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 80-370 V |
| Product Width (unpacked) | 97 mm |
| Product Height (unpacked) | 36 mm |
| Product Depth (unpacked) | 99 mm |
