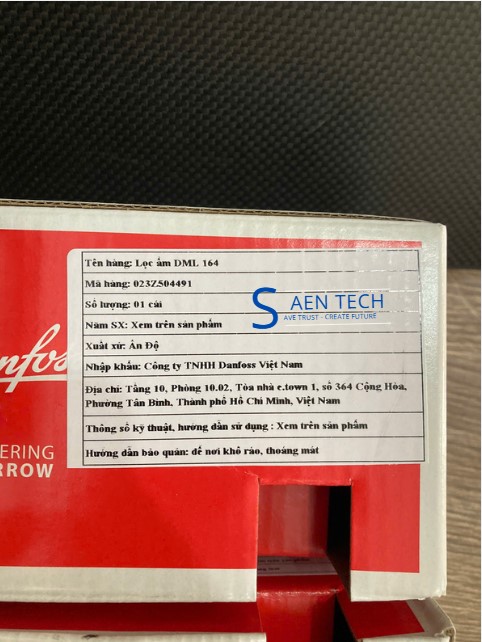

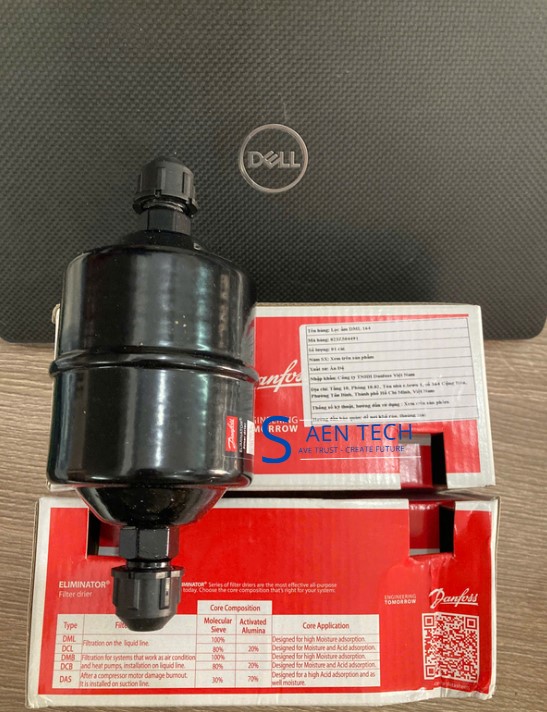

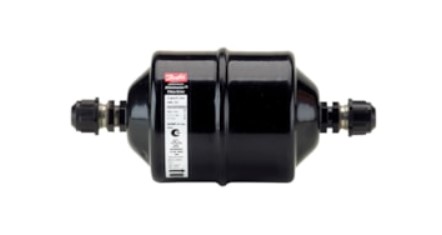

Lọc ẩm DML 164
- Type designation: DML 164
- Mã sản phẩm: 023Z504491
- Connection type: Flare (ren)
- Connection size: 12 mm, 1/2 in
- Thương hiệu: Danfoss
- Xuất xứ: Danfoss India
Mô tả
| Gross weight | 0.759 Kilogram |
| Net weight | 0.74 Kilogram |
| Volume | 1.311 Liter |
| EAN | 5702428650113 |
| Acid capacity [g] | 1.2 g |
| Acid capacity [oz] | 0.042 oz |
| Activated alum/Molec sieve [%] | 0% / 100% |
| Activated alumina [%] | 0% |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| China RoHS compliance | Yes exceed limitations |
| Connection material | Steel |
| Contain batteries | No |
| Core | Solid core |
| Core Size code | 16 cu.in. |
| Core type | Solid core |
| Drying Cap[Drops of Water]24°C | R134a: 559 R290: — R32: 470 R404A: 582 R407C: 543 R410A: 506 R507: 610 |
| Drying Cap[Drops of Water]52°C | R134a: 512 R290: — R32: 433 R404A: 551 R407C: 500 R410A: 450 R507: 548 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) |
| Filter application | High Moisture Capacity |
| Flow capacity [kW] | R134a: 26.6 R290: — R32: 40.5 R404A: 18.7 R407C: 27.2 R410A: 27.7 R507: 18.1 |
| Flow capacity [TR] | R134a: 7.6 R290: — R32: 11.5 R404A: 5.3 R407C: 7.7 R410A: 7.9 R507: 5.2 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Inlet 1 connection size [in] | 1/2 in |
| Inlet connection size [m] | 12 mm |
| Inlet connection type | Flare |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Molecular sieve [%] | 100 % |
| Net volume [foz US] | 7.63 Fluid Ounce US |
| Net volume [l] | 0.226 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 1/2 in |
| Outlet connection size [mm] | 12 mm |
| Outlet connection type | Flare |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Product accessories | Generic accessories |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product Name Description | Hermetic filter drier |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1234yf; R125; R134a; R22/R407C; R23; R32; R404A; R407A; R407F; R410A; R422B; R422D; R438A; R444B; R448A; R449A; R449B; R450A; R452A; R452B; R454B; R455A; R507A; R513A; R1234ze(E); R1233zd(E); R407H; R454A; R454C; R463A; R515B; R516A |
| Serviceable | No |
| Shell volume [foz US] | 11.97 Fluid Ounce US |
| Shell volume [l] | 0.35 L |
| Solid core surface [cm2] | 183 cm² |
| Solid core surface [in2] | 28.34 in² |
| Solid core volume [cm3] | 128 cm³ |
| Solid core volume [in3] | 7.84 in³ |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | DML |
| Type designation | DML 164 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125; R134a; R22; R23; R404A; R407A; R407C; R407F; R410A; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A |
| UL evaluated | Yes |
