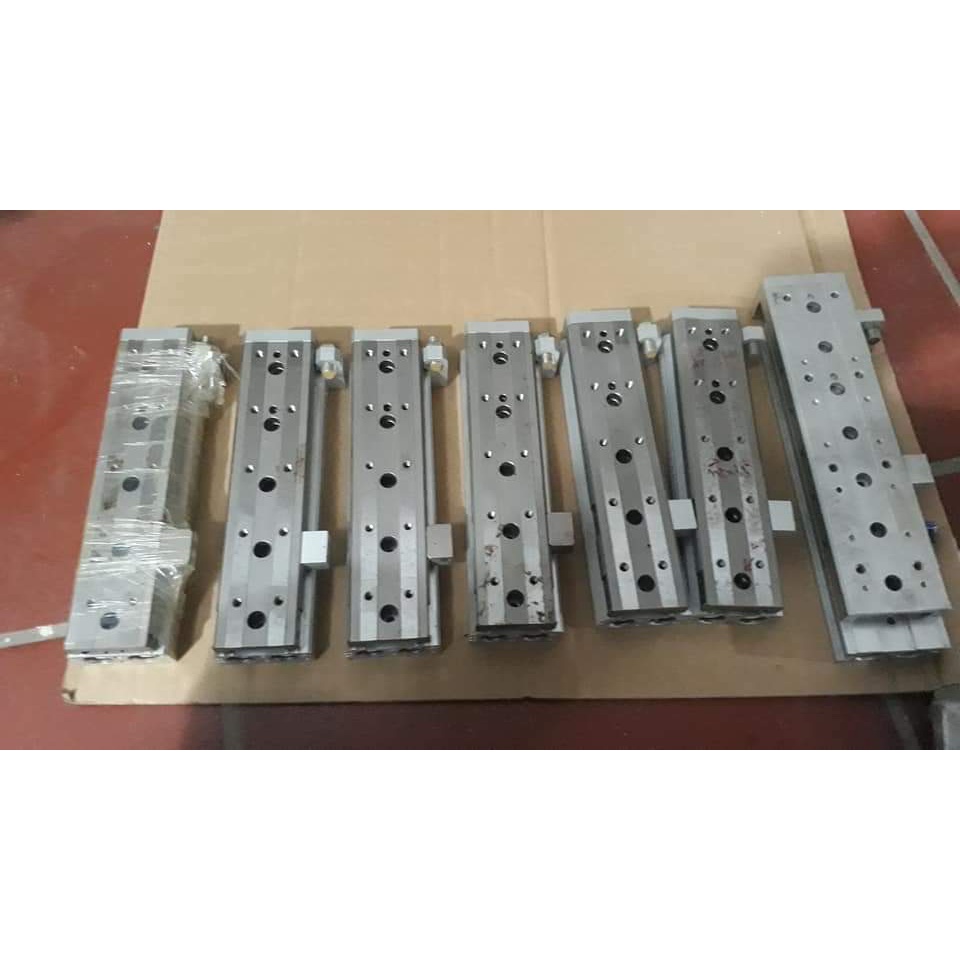

Xi lanh SMC MXQ16-125AS
Mô tả

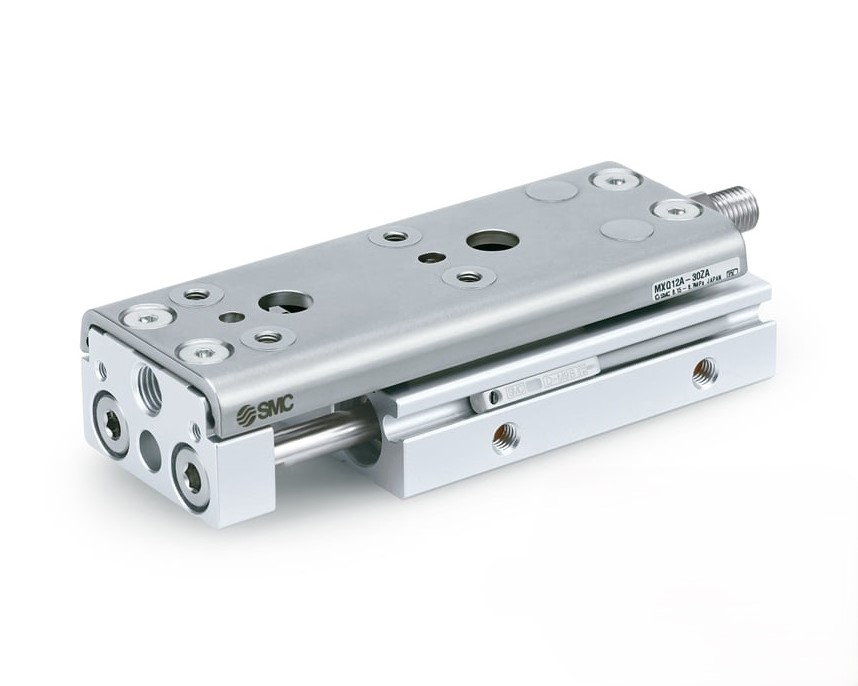

Air Slide Table, MXQ Series (MXQ16-125AS)
| Type | L-Shaped Table Type | Stroke(mm) | 125 |
| Table Material | [Aluminum] Aluminum | Maximum load weight (when horizontally mounted)(kg) | 1~4.9 |
| Max. Load Mass(kg) | 4 | Table Size Length L(mm) | 214 |
| Cylinder Inner Diameter(Ø) | 16 | Usage Environment | General Purpose |
| Table Surface Treatment | Electroless Nickel Plating | Guide | [Rolling Guide] Linear guide type |
| Table Size Width W(mm) | 49 | Table Size Height H(mm) | 37 |
MXQ12-100
MXQ12-100-M9B
MXQ12-100-M9NVL
MXQ16-125AS-A90S
MXQ16-125AS-M9BV
MXQ16-125ASBT
