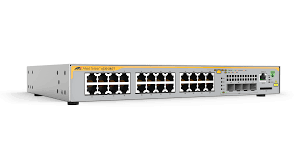

Allied Telesis AT-x230-28GT-50
Mã hàng: AT-x230-28GT-50
Chất lượng: Hàng mới 100%
Bảo hành: Chính hãng
Description
Thông số kỹ thuật Switch Allied Telesis x230-28GT
| Specifications | |
| 10/100/1000T (RJ-45) COPPER PORTS | 24 |
| 100/1000X SFP PORTS | 4 |
| POE+ ENABLE PORTS | |
| SWITCHING FABRIC | 56Gbps |
| FORWARDING RATE | 41.7Mpps |
| Product Specifications | |
| WIDTH X DEPTH X HEIGHT | 341 x 231 x 44 mm |
| WEIGHT | 2.4 kg |
| Performance | Up to 16K MAC addresses Up to 512 multicast entries 256MB DDR SDRAM (GP models) 512MB DDR SDRAM (GT models) 2048 configurable VLANs (GP models) 4094 configurable VLANs (GT models) 64MB flash memory Packet Buffer memory: 1.5MB Supports 10KB jumbo frames Wirespeed forwardi |
| Environmental specifications | |
| Operating temperature range: 0°C to 50°C (32°F to 122°F), 0°C to 40°C (32°F to 104°F) (x230L models) | |
| Storage temperature range: -20°C to 60°C (-4°F to 140°F) | |
| Power characteristics | |
| MAX POWER CONSUMPTION (NO POE LOAD) | 26W |
| MAX HEAT DISSIPATION (NO POE LOAD) | 89 BTU/hr |
| MAX POWER CONSUMPTION (FULL POE+ LOAD) | |
| MAX HEAT DISSIPATION (FULL POE+ LOAD) | |
| Standards and Protocols | IEEE 802.2 Logical Link Control (LLC) IEEE 802.3 Ethernet IEEE 802.3ab1000BASE-T IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet plus (PoE+) IEEE 802.3azEnergy Efficient Ethernet (EEE) IEEE 802.3u 100BASE-X IEEE 802.3x Flow control – full-duplex operation IEEE 802.3z 1000BASE-X IEEE 1588v2 Precision clock synchronization protocol v2 |
