Sản phẩm

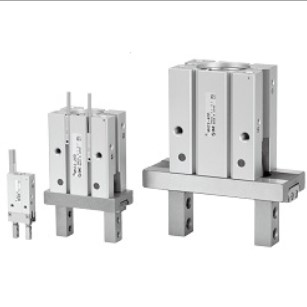

Kẹp khí SMC MHZ2-16S
- Mã sản phẩm: MHZ2-16S
- Thương hiệu: SMC
Mô tả
| Type | [Main Body] Main body | Gripping Methods | Pinch, Parallel Type / Open, Parallel Type |
| Number of Fingers | 2 pcs. | Main Body Shape | Square Shape |
| Operation Method | Single Acting Type (Normally Open) | Dimensions when open | 20.9 |
| Dimensions when closed | 14.9 | Gripping Force (when 0.5Mpa at opening) | – |
| Gripping Force (when 0.5Mpa at closing) | 27 | Environment, Applications | Standard |
| Additional Functions | With Linear Guide / High Accuracy | Stroke Adjustment Mechanism | Not Provided |
| Cylinder internal diameter | 16 | Finger position / Options | Standard basic type |
| Body options | Basic type | Auto switch | None |
| Number of switches | None | Lead wire length | None |
| Made to order specifications | None | Connector type for gripper opening/closing | None |
| Specifications | – | Type | – |
| Compatible Series | – | – | – |
Đánh giá
Chưa có đánh giá nào.
